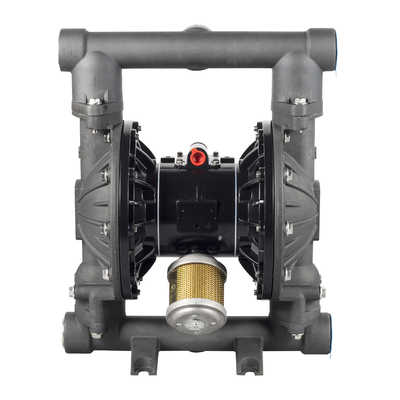

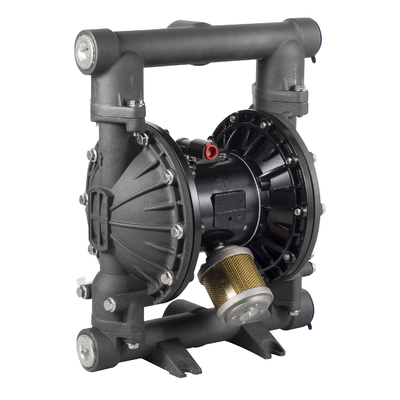

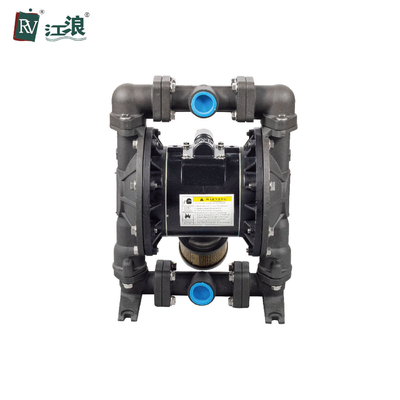

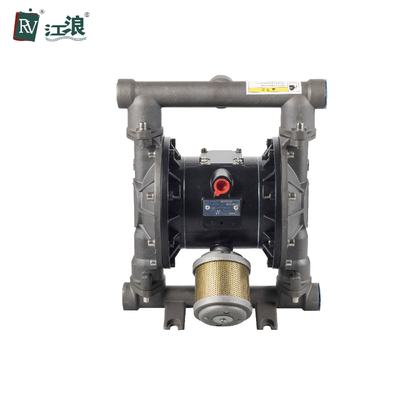

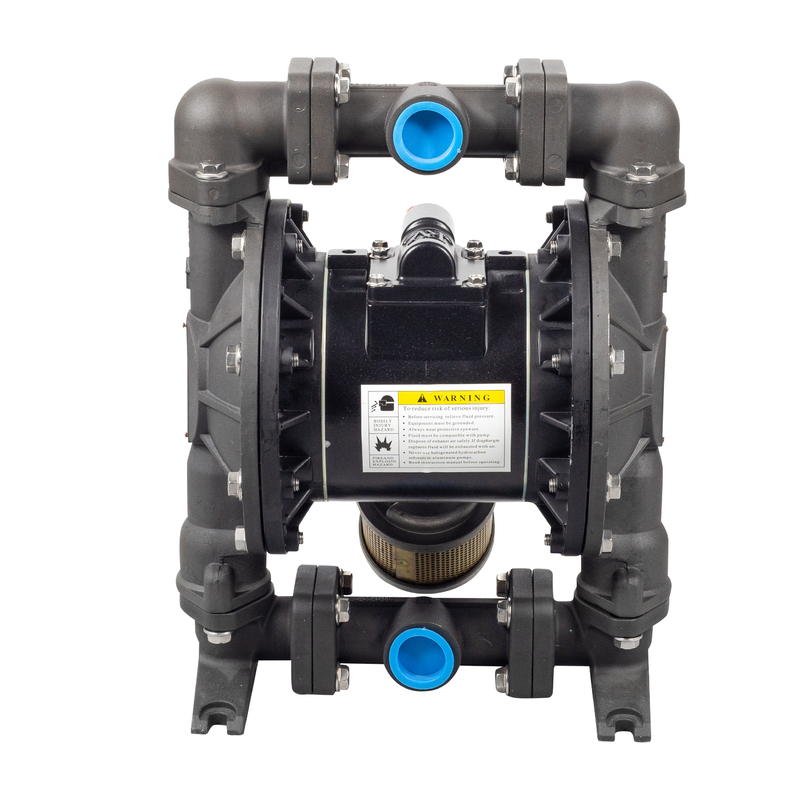

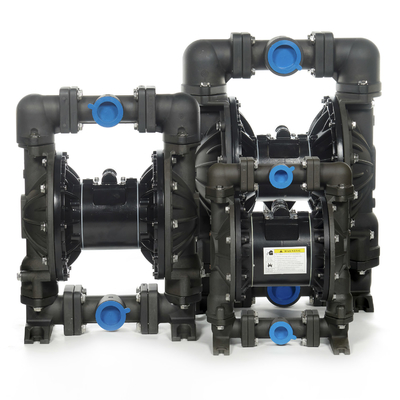

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Großes Bild :  Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Produktdetails:
Herkunftsort: Shanghai, China
Markenname: RV
Modellnummer: Die in Absatz 1 genannten Bedingungen gelten nicht.
Zahlung und Versand AGB:
Min Bestellmenge: 2
Preis: $1,404.10
Kontakt

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Beschreibung
Auslassgröße: 1 Zoll Material: Aluminium
Zwerchfellmaterial: Ptfe Maximaler Druck: 120psi (0,84 mPa, 8,4 Beute)
Maximaler Fluss: 90gpm (340 Uhr) Maximaler Arbeitsdruck: 120 psi (0,84 mPa, 8,4 Bbar)
Maximale Durchflussrate: 90gpm (340 lpm) Maximale Wechselgeschwindigkeit: 200cpm
Maximale Saughöhe: 5m Maximal zulässiges Getreide: 0,2in. (5 mm)
Max Air Consumption: 45 cm3 (22,5 L/s) Lufteinlassgröße: 1/2 in
Größe der Luftöffnung: 3/4 Zoll Flüssigkeitseinlassgröße: 11/2
Flüssigkeitsauslassgröße: 11/2 Gewicht: 16 kg
Hervorheben:

1 inch aluminum diaphragm pump

,

120psi aluminum diaphragm pump

,

high pressure diaphragm pump

Aluminum Diaphragm Pumps - Air-operated Double Diaphragm Pumps
Product Specifications
Attribute Value
Warranty 1 year
Customized Support OEM, ODM
Power Source Pneumatic
Pressure Low Pressure
Structure Diaphragm Pump
Outlet Size 1 inch
Material Aluminum
Diaphragm Material PTFE
Speed 200cpm
Max Pressure 120psi (0.84Mpa, 8.4bar)
Max Flow 90gpm (340pm)
Technical Specifications
Parameter Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 90gpm (340lpm)
Max Reciprocating Speed 200cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2in. (5mm)
Max Air Consumption 45scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1 1/2 in
Fluid Outlet Size 1 1/2 in
Weight 16kg (Aluminum pump)
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 0
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 1
Product Advantages
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 2
Packaging & Delivery
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 3
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 4
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 5
Company Profile
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 6
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in diaphragm pumps and control valves with over 40 patents, including 10 invention patents.
Our Service
  • All inquiries replied within 24 working hours
  • Professional pump producer with design team
  • Standard export packaging (non-fumigation wooden cases)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - please confirm exact payment terms with us when ordering.
Q: What is the delivery time?
A: Typically 1-7 working days, depending on quantity.
Q: How are products packaged?
A: Cartons with foam inside, wooden cases, or pallets depending on order size.
Q: What is the warranty period?
A: 15 years warranty for air motor, 5 years for pump body.
